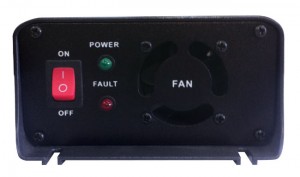

DC DC Converter 24V to 12V Power Converter 20Amp

Short Description:

Model: PV2412-20A

·Input voltage: 20V DC to 30V DC

·Output voltage: 12V DC to 13.8V DC

·Standby current: ≤70mA

·Output power: 20A (continuous), 30A (maximum)

·Input fuse: 20A, Standard auto blade fuse (Internal*)

·Connection cable: 2.5mm/ 900mm.

·Efficiency: 85% to 90%

·Thermal shutdown: 65+/-5

·Input polarity reverse diode protection

·Output polarity reverse circuit protection

·Output short-circuit protection

·Overheating circuit protection

·Overload circuit protection.

·Operating temperature: 0~40℃

·Storage temperature: -15℃~45℃

·Operating relative humidity: 10%RH~102%RH

·Compliant standards: CE, EN61000, 2006/28/EC.

·Dimension: 182 x 115 x 62mm

·Net weight: 0.8kg


Product Detail

Product Tags

1.Dc to Dc converter;

2.Designed to electric vehicle;

3.Also could customize it;

4.High quality and low price converters for you choose.

PACO 24v to 12v voltage dc dc converter

DC to DC converter
P/No. PV2412-6 PV2412-10 PV2412-20 PV2412-30 PV2412-40 PV2412-50 PV2412-60 PV2412-100
Input voltage 20-30V
Output voltage 12-13.8V
Output power 6 Amp (continuous) 10 Amp (continuous) 20 Amp (continuous) 30Amp (continuous) 40Amp (continuous) 50 Amp (continuous) 60; Amp (continuous) 100 Amp (continuous)
Output power ;10 Amp(Max) 15 Amp(Max) 30 Amp(Max) 45 Amp(Max) 60 Amp(Max) 70 Amp(Max) 80 Amp(Max) 130 Amp(Max)
Standby current ≤15 mA ≤20 mA ≤70 mA ;≤80 mA ≤80 mA ≤90 mA ≤90 mA ≤110 mA
Input fuse 7.5A 10A 20A 30A 40A 2*30A 2*40A 4*30A
Efficiency 85%~90%
Thermal protection 65°C±5°C
Connection cable ;1.5mm2/900mm 2.0mm2/900mm 2.5mm2/900mm 4.0mm2/900mm 6.0mm2/900mm 10mm2/900mm 12mm2/900mm ;20mm2/900mm
Fuse location input Internal External Internal
Cooling fan No Automatic temperature controlled
Input polarity reverse Diode protection
Output polarity reverse Circuit protection
Output short Circuit protection
Over heating Circuit protection
Over load Circuit protection
Dimension(L*W*H) 88*87*42mm 126*87*42mm 182*115*62mm 222*115*62mm 222*115*62mm 275*165*79mm 275*165*79mm 365*165*79mm
Weight(KG) 0.35 0.45 0.8 0.95 1.0 2.0 2.0 3.03

Wholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizer

Wholesale single phase 220v ac 5000va voltage regulator stabilizer

Packaging & Shipping

1. Cargo carton or depends on customer’s request.

2. 40-45 working days upon the receipt of deposit

Wholesale single phase 220v ac 5000va voltage regulator stabilizerWhy choose us:

l- The good construction warranty-1 years

l- Your client satisfied on the right schedule and quality

l- Your can get good reputation from your market and obtain more orders

l- Our professional service before and after sale

l- The reasonable price

l- Any questions from you are welcome and will be replied in 24 hours.
