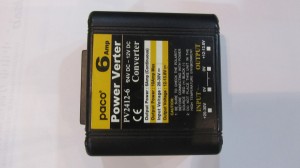

China PACO DC To DC Power Converter 6Amp Manufacturer CE CB ROHS

Short Description:


  • Min. Order Quantity: 500 Pieces/Model
  • Sample Testing: Welcome to order for testing
  • Dimension: 88 x 87 x 42mm
  • Net weight: 0.35kg
  • Product Detail

    Product Tags

    China PACO DC To DC Power Converter 6Amp Manufacturer CE CB ROHS



    Δ Dc to Dc converter;

    Δ Designed to electric vehicle;

    Δ Also could customize it;

    Δ High quality and low price converters for you choose.

    photobank (3)

    photobank (2)

    PACO 24v to 12v voltage dc dc converter

    DC to DC converter
    P/No. PV2412-6 PV2412-10 PV2412-20 PV2412-30 PV2412-40 PV2412-50 PV2412-60 PV2412-100
    Input voltage 20-30V
    Output voltage 12-13.8V
    Output power 6 Amp (continuous) 10 Amp (continuous) 20 Amp (continuous) 30Amp (continuous) 40Amp (continuous) 50 Amp (continuous) 60; Amp (continuous) 100 Amp (continuous)
    Output power ;10 Amp(Max) 15 Amp(Max) 30 Amp(Max) 45 Amp(Max) 60 Amp(Max) 70 Amp(Max) 80 Amp(Max) 130 Amp(Max)
    Standby current ≤15 mA ≤20 mA ≤70 mA ;≤80 mA ≤80 mA ≤90 mA ≤90 mA ≤110 mA
    Input fuse 7.5A 10A 20A 30A 40A 2*30A 2*40A 4*30A
    Efficiency 85%~90%
    Thermal protection 65°C±5°C
    Connection cable ;1.5mm2/900mm 2.0mm2/900mm 2.5mm2/900mm 4.0mm2/900mm 6.0mm2/900mm 10mm2/900mm 12mm2/900mm ;20mm2/900mm
    Fuse location input Internal External Internal
    Cooling fan No Automatic temperature controlled
    Input polarity reverse Diode protection
    Output polarity reverse Circuit protection
    Output short Circuit protection
    Over heating Circuit protection
    Over load Circuit protection
    Dimension(L*W*H) 88*87*42mm 126*87*42mm 182*115*62mm 222*115*62mm 222*115*62mm 275*165*79mm 275*165*79mm 365*165*79mm
    Weight(KG) 0.35 0.45 0.8 0.95 1.0 2.0 2.0 3.03

    Wholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizer

    Wholesale single phase 220v ac 5000va voltage regulator stabilizer

    Packaging & Shipping:

    1. Cargo carton or depends on customer’s request.

    2. 40-45 working days upon the receipt of deposit

    Wholesale single phase 220v ac 5000va voltage regulator stabilizer

    Why choose us:

    l- The good construction warranty-1 years

    l- Your client satisfied on the right schedule and quality

    l- Your can get good reputation from your market and obtain more orders

    l- Our professional service before and after sale

    l- The reasonable price

    l- Any questions from you are welcome and will be replied in 24 hours.
