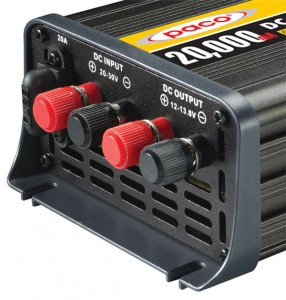

China New Product Isolated 20A DC-DC Converter 24V to 12V for electric scooter

Short Description:

Model: PV2412-20A

·Input voltage: 20V DC to 30V DC

·Output voltage: 12V DC to 13.8V DC

·Standby current: ≤70mA

·Output power: 20A (continuous), 30A (maximum)

·Input fuse: 20A, Standard auto blade fuse (Internal*)

·Connection cable: 2.5mm/ 900mm.

·Efficiency: 85% to 90%

·Thermal shutdown: 65+/-5

·Input polarity reverse diode protection

·Output polarity reverse circuit protection

·Output short-circuit protection

·Overheating circuit protection

·Overload circuit protection.

·Operating temperature: 0~40℃

·Storage temperature: -15℃~45℃

·Operating relative humidity: 10%RH~102%RH

·Compliant standards: CE, EN61000, 2006/28/EC.


  • Min. Order Quantity 500 Pieces/Model
  • Sample Testing Welcome to order for testing
  • Dimension: 182 x 115 x 62mm
  • Net weight: 0.8kg
  • Product Detail

    Product Tags

    In order to give you convenience and enlarge our business, we also have inspectors in QC Team and assure you our best service and product for China New Product Isolated 20A DC-DC Converter 24V to 12V for electric scooter, We fully welcome shoppers from all around the world to ascertain stable and mutually effective enterprise interactions, to have a dazzling long run jointly.
    In order to give you convenience and enlarge our business, we also have inspectors in QC Team and assure you our best service and product for , Each year, many of our customers would visit our company and achieve great business advancements working with us. We sincerely welcome you to visit us at any time and together we will prevail to a greater success in the hair industry.

    SWITCHMODE:

    1. Input Polarity reverse: Diode Protection

    2. Output Polarity reverse: Circuit Protection

    3. Output Short: Circuit Protection

    4. Over Heating: Circuit Protection

    5. Over Load: Circuit Protection



    photobank (3)



    photobank (2)



    photobank



    PACO 24v to 12v voltage dc dc converter

    DC to DC converter
    P/No. PV2412-6 PV2412-10 PV2412-20 PV2412-30 PV2412-40 PV2412-50 PV2412-60 PV2412-100
    Input voltage 20-30V
    Output voltage 12-13.8V
    Output power 6 Amp (continuous) 10 Amp (continuous) 20 Amp (continuous) 30Amp (continuous) 40Amp (continuous) 50 Amp (continuous) 60; Amp (continuous) 100 Amp (continuous)
    Output power ;10 Amp(Max) 15 Amp(Max) 30 Amp(Max) 45 Amp(Max) 60 Amp(Max) 70 Amp(Max) 80 Amp(Max) 130 Amp(Max)
    Standby current ≤15 mA ≤20 mA ≤70 mA ;≤80 mA ≤80 mA ≤90 mA ≤90 mA ≤110 mA
    Input fuse 7.5A 10A 20A 30A 40A 2*30A 2*40A 4*30A
    Efficiency 85%~90%
    Thermal protection 65°C±5°C
    Connection cable ;1.5mm2/900mm 2.0mm2/900mm 2.5mm2/900mm 4.0mm2/900mm 6.0mm2/900mm 10mm2/900mm 12mm2/900mm ;20mm2/900mm
    Fuse location input Internal External Internal
    Cooling fan No Automatic temperature controlled
    Input polarity reverse Diode protection
    Output polarity reverse Circuit protection
    Output short Circuit protection
    Over heating Circuit protection
    Over load Circuit protection
    Dimension(L*W*H) 88*87*42mm 126*87*42mm 182*115*62mm 222*115*62mm 222*115*62mm 275*165*79mm 275*165*79mm 365*165*79mm
    Weight(KG) 0.35 0.45 0.8 0.95 1.0 2.0 2.0 3.03

    Wholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizerWholesale single phase 220v ac 5000va voltage regulator stabilizer

    Wholesale single phase 220v ac 5000va voltage regulator stabilizer





    Packaging & Shipping:

    1. Cargo carton or depends on customer’s request.

    2. 40-45 working days upon the receipt of deposit

    Wholesale single phase 220v ac 5000va voltage regulator stabilizer





    Why choose us:

    l- The good construction warranty-1 years

    l- Your client satisfied on the right schedule and quality

    l- Your can get good reputation from your market and obtain more orders

    l- Our professional service before and after sale

    l- The reasonable price

    1.Designed to electric vehicle;

    2.Also could customize it;

    3.High quality and low price converters for you choose.

    l- Any questions from you are welcome and will be replied in 24 hours.
